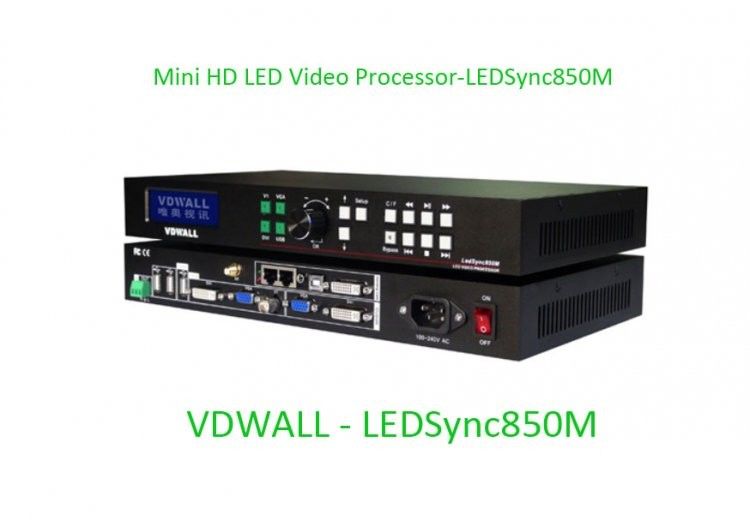

VDWALL LEDSync850M Mini HD LED Video Processor USB support
تفاصيل المنتج:
| Place of Origin: | china |
| اسم العلامة التجارية: | muenled |
| إصدار الشهادات: | CCC,FCC,ISO,9001,ROHS,CE |
شروط الدفع والشحن:
| Minimum Order Quantity: | 3PCS |
|---|---|
| الأسعار: | US$ 686 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 1000PCS |
|
معلومات تفصيلية |
منتوج وصف
- Model: LCC-VDWALL-LEDSync850M
- Shipping Weight: 3kg
- 43 Units in Stock
- Manufactured by: Vdwall
VDWALL LEDSync850M Mini HD LED Video Processor USB support
DHL Free Shipping
LEDSync850M LED Video Processor Features:
1. The latest broadcast video processing technology brings clearer and more fluent images,
more brilliant colors and more vivid scenes
3. New Faroudja® Real Color®
4. Built-in HD multi-media player, USB2.0, video and image playing by USB supported
5. Online real-time VOD through Wi-Fi supported
6. DVI is HDMI 1.3a ( with HDCP ) compatible, HD 1080P input
7. Seamless switching or Fade-in / Fade-out between three groups of input signals ( Video,
VGA, DVI / USB )
8. Maximum output resolution of single unit: 1920 x 1080
9. Switching 4 input signals ( 1 x video, 1 x VGA, 1 x DVI, 1 x USB ) by one key
10. USB HD multi-media player supports stereo audio output
11. Easy setup and adjustment through knob and keys on the panel, Full-design USB protocol for
operating and setting
13. One sending card built-in ability and the structure design is compatible with most of sending
cards available on the market
14. 24 / 7 application, high reliability and stability.
|
Inputs |
||
|
Type / Quantity |
1 x Video 1 x VGA(RGBHV) 1 x DVI(HDMI1.3) 1 x USB |
|
|
Video Standard |
PAL / NTSC |
|
|
Composite Video |
1V(p_p)/ 75Ω |
|
|
VGA Format |
PC(VESA) |
≤1920x1080@60Hz |
|
VGA Amplitude / |
R,G,B = 0.7 V(p_p)/ 75Ω |
|
|
DVI Format |
PC(VESA ) |
≤1920x1080@60Hz |
|
HDMI1.3(CEA-861) |
||
|
USB |
Video File Format |
mkv, ts, avi, wmv, rmvb, mpeg, |
|
Video Encoding Format |
H.264(AVC HD), VC-1(WMV HD), |
|
|
Picture Format |
JPG, PNG, BMP ( maximum pixels: |
|
|
Input Connectors |
Video:BNC VGA:15pin D_Sub( Female ) DVI:24+1 DVI_D USB: A Type |
|
|
Outputs |
||
|
Type / Quantity |
1 x VGA(RGBHV) 1 x DVI |
|
|
Output Resolution |
1024 x 768@60Hz / 75Hz 1280 x 1024@60Hz / 75Hz 1366 x 768@60Hz 1440 x 900@60Hz 1600 x 1200@60Hz 1920 x 1080@50Hz / 60Hz |
|
|
VGA Output |
R,G,B = 0.7 V(p_p)/ 75Ω |
|
|
Audio Output |
2.0Vp-p / 10KΩ |
|
|
Output Connectors |
VGA OUT:15pin D_Sub( Female ) DVI OUT:24+1 DVI_D |
|
|
Others |
||
|
Control method |
Panel / Upper computer software |
|
|
Input Voltage |
100-240VAC 50/60Hz |
|
|
Overall Power |
Max 20W |
|
|
Temperature |
0-40℃ |
|
|
Humidity |
15-85% |
|
|
Product Size |
340mm(Length)x 190mm(Width)x 44mm(Height) |
|
|
Weight( G.W.) |
2.8Kg |
|
| Weight( N.G.) |
1.7Kg |
|
