Psc-4.8 Rental Led Display /Stage Background LED Video Wall Supply preferred muenled
تفاصيل المنتج:
| Place of Origin: | china |
| اسم العلامة التجارية: | muenled |
| إصدار الشهادات: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | Psc-4.8 |
شروط الدفع والشحن:
| Minimum Order Quantity: | 10SQM |
|---|---|
| الأسعار: | $10811 |
| Packaging Details: | flijht case |
| Delivery Time: | 7 days |
| Supply Ability: | >9999PCS |
|
معلومات تفصيلية |
منتوج وصف

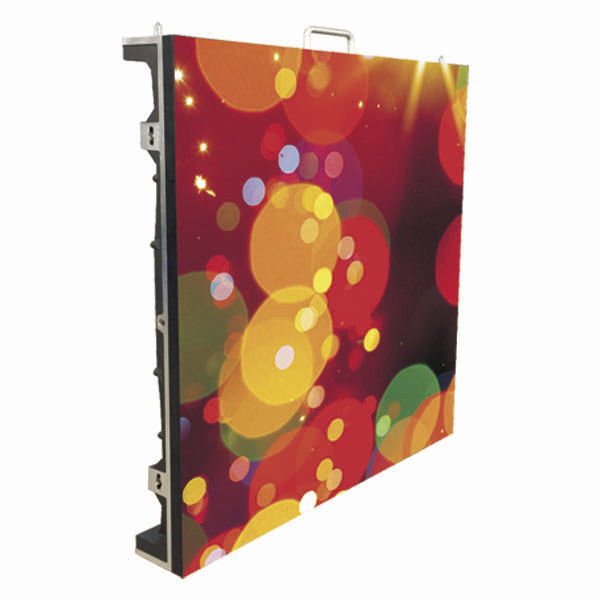

Outdoor SMD Die-casting ultra slim cabinet
1.Hot series of muenled, applicable both indoor and outdoor , present the wide angle and exquisite high-definition images for you.
2.Black face led greatly improves the contrast ratio and display effect.
3.Location pins in the side work with the flywheel style fast lock of the ultra-thin cast aluminum cabinet enable faster installation and maintenance ,and ensure flatness and tidiness of the screen.
4.Fanless and IP65 waterproof design of cabinet greatly protect cabinet in any outdoor environment.
Cellular design for back of the module, not only looks beautiful, but also enlarges the heat radiating area.
| Unit Module | NO. | Psc-4.8 Rental Led Display |
| Pixel pitch | 4.8mm | |
| Size of Pxiel | HB-SMD2724(3 in 1) | |
| Size of block module | 320mm×160mm | |
| Resolution of module | 66×33 | |
| Density | 42539dots/m² | |
| Module power | 40W | |
| Cabinet | Cabinet material | Alu |
| Size of cabinet(l*h*t) | 640mm×640mm×125mm | |
| Weight of cabinet | 12.5KG | |
| Support hanging or not | Yes | |
| Main Parameter | Best viewing distance | >5m |
| Best viewing angle | ≤140° | |
| Max power consumption | 1000W/m² | |
| Colors | >16.7M | |
| Gray scale | 16bits | |
| Color temperature | 6500K | |
| Control method | Synchronization | |
| Driving device | Constant current | |
| Driving method | 1/11scanning | |
| Frame frequency | 60Hz | |
| Refresh frequency | 1400-4800Hz | |
| Brightness | >2600cd/m² | |
| Working voltage | AC220V/110V±10％ | |
| Working temperature | -20℃~50℃±10％ | |
| Out-of control point | <0.0001 | |
| Brightness Control | 256 grade | |
| IP grade | IP65 | |
| Mtbf | 10,000Hours | |
| Life span | 100,000Hours |
As the figure shows, you can connect nearly all the video devices with your LED display. Video processor is a kind of devices that can convert the other video signal to DVI signal. And then the DVI signal will goes to the LED sender, and send from the CAT5 to the display.
For the further use, you can use the vidoe device like switcher, scaler and video matrix with our LED display.
