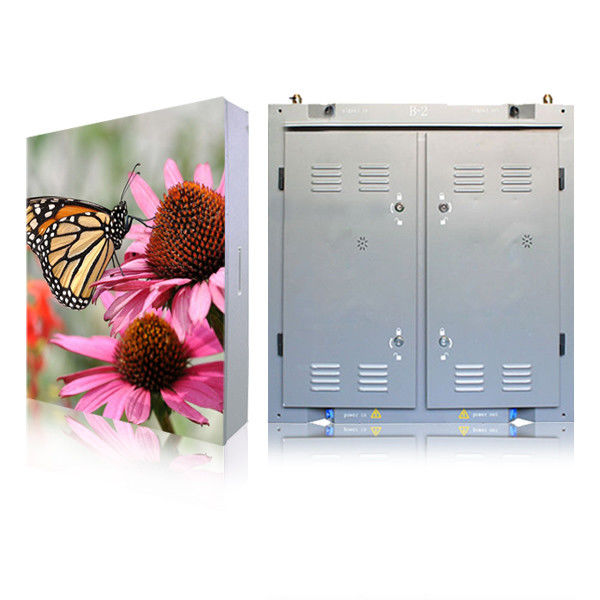

P16 DIP Full Color Outdoor Advertising LED Screen Sign
تفاصيل المنتج:
| Place of Origin: | CHINA |
| اسم العلامة التجارية: | MUENLED |
| إصدار الشهادات: | CE, RoHS |
| Model Number: | P16 |
شروط الدفع والشحن:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Packaging Details: | wooden cases |
| Delivery Time: | 7-15DAYS |
| Supply Ability: | 999SQM |
|
معلومات تفصيلية |
|||
| NAME: | P16 DIP Full Color Outdoor Advertising LED Screen Sign | ||
|---|---|---|---|
منتوج وصف
 |
|
|
|
|
|
Basic Info
- Model NO.: P8, P10, P12, P16
- IP Rating: IP65
- Pixel Configuration: 1R, 1G, 1B
- Average Power Consumption: 350W / m²
- Scanning Mode: Static Scan
- Trademark: MUEN-SIGN
- Origin: Shenzhen, China
- Tube Chip Color: Full Color
- Pixel Pitch: 16mm
- Display Function: Video Display
- Pixel Density: 3906 Pixels/Sq.M
- Certification: CE, RoHS
- Specification: CE, ROHS, ISO9001
- HS Code: 8528591090
Product Description
P16 DIP Full Color Outdoor Advertising LED Screen Sign
Key Benefits
1. Broad viewing angle;
2. Frame-free installation;
3. Front and rear side maintenance.
4. High brightness, visible even with direct sunshine;
5. High waterproof and dustproof, IP65 both front and rear side
6. Having good lightening accordance and no mosaic;
7. Having large viewing angle: Getting vivid effect within any position of the viewing range;
8. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.
LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD
Key Benefits
1. Broad viewing angle;
2. Frame-free installation;
3. Front and rear side maintenance.
4. High brightness, visible even with direct sunshine;
5. High waterproof and dustproof, IP65 both front and rear side
6. Having good lightening accordance and no mosaic;
7. Having large viewing angle: Getting vivid effect within any position of the viewing range;
8. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.
LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD
| Model | PH16 |
| Pixel Pitch | 16mm |
| Unit Size | 1024mm x 1024mm |
| LED Type | 1R1G1B |
| Pixel / Unit | 64x64 |
| Unit Weight | 68kg(steel) or 48kg(Aluminum) |
| Viewing Angle | H140° V70° |
| Application | Storage-40~60° C, Working-20~50° C |
| Protection Level | IP65 |
| Power Consumption | 840W/panel Max |
| 420W/Panel Ave. | |
| Driving | Static |
| Frame Refresh | ≥60Hz |
| Data Refresh Rate | 1200~4000Hz |
| Processing | 16bit |
| Max Brightness | 5500-6500nits |
| Power Supply | AC90-240V, 50~60Hz |
| MTBF | ≥1000 Hours |
| Life Span | ≥50000 Hours |
| Pixel Failure | < 0.0003 |
