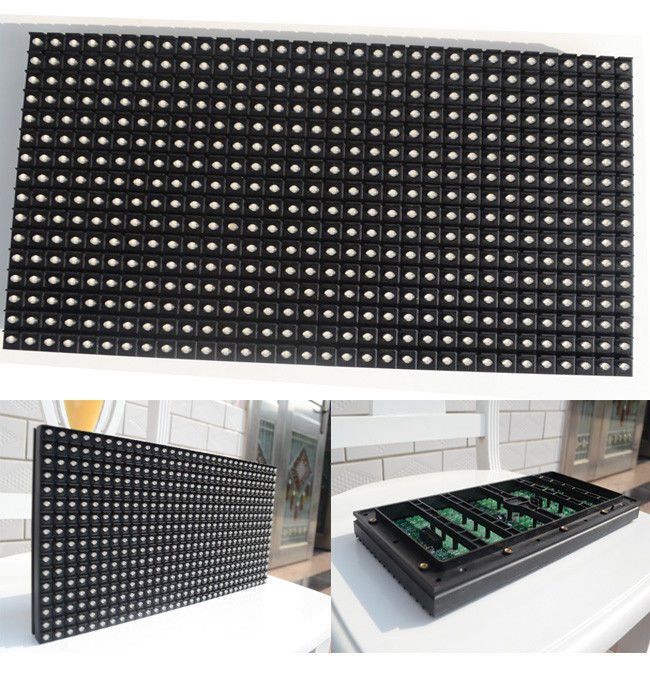

Ph10mm Outdoor RGB 3IN1 LED Display Panel
تفاصيل المنتج:
| Place of Origin: | china |
| اسم العلامة التجارية: | muenled |
| إصدار الشهادات: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH10 |
شروط الدفع والشحن:
| Minimum Order Quantity: | 100pcs |
|---|---|
| الأسعار: | US$ 15 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
معلومات تفصيلية |
منتوج وصف
Ph10mm RGB 3IN1 Outdoor led display panel is the new products for outdoor, it has the better color uniformity and low consumption.and the price is almost same as Ph10mm RGB LED Module.
| Features: | |
|
Resolution |
32(H)×16(V) |
|
Pitch |
10mm |
|
Density |
10000 pixels/㎡ |
|
LED Arrangement |
RGB 3IN1 |
|
Driver Mode |
Dynamic 1/4 Duty constant current |
|
Size |
320mm×160mm |
|
Mask |
Pure Black mask-high contrast screen |
| Warranty | 2 Years Warranty |
|
Electricity Parameter |
|
|
Brightness |
≥7000cd/㎡ |
|
View Angle |
140 degree ( horizontal) 140 degree(vertical) |
|
Best View Distance |
7m-100m |
|
Gray Scale |
8bits input, correction with 14bits |
|
Display Color |
16.7M |
|
Brightness Adjustment |
100 levels |
|
Ph10mm RGB 3IN1 LED Display Panel Effect
|
|
