Ph8mm Outdoor SMD LED Display Module
تفاصيل المنتج:
| Place of Origin: | china |
| اسم العلامة التجارية: | muenled |
| إصدار الشهادات: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH8 |
شروط الدفع والشحن:
| Minimum Order Quantity: | 100pcs |
|---|---|
| الأسعار: | US$ 13.70 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
معلومات تفصيلية |
|||
| Screen Dimension: | 256*128 | Usage: | Outdoor |
|---|---|---|---|
| Tube Chip Color: | Full Color | Display Function: | Video |
| Pixels: | 8 | ||
منتوج وصف

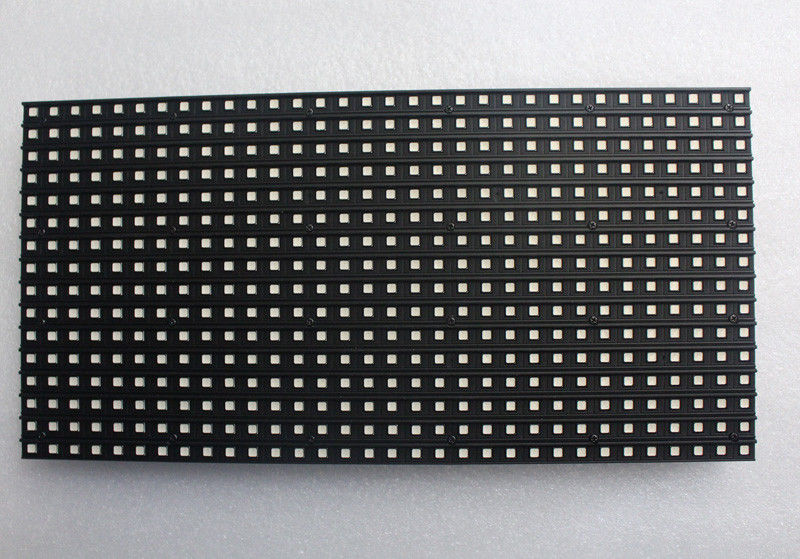

Ph8mm Outdoor LED Module is the most popular outdoor led display panel for outdoor advertsing.with high definition and high brightness and long viewing distance and best uniformtiy.
| Features: | |
|
Resolution |
32(H)×16(V) |
|
Pitch |
8mm |
|
Density |
15625 pixels/㎡(real density) |
|
LED Arrangement |
SMD 3IN1 |
|
Driver Mode |
Dynamic 1/8 Duty constant current |
|
Size |
256mm×128mm |
|
Mask |
Pure Black mask-high contrast screen |
| Warranty | 2 Years Warranty |
|
Electricity Parameter |
|
|
Brightness |
≥7000cd/㎡ |
|
View Angle |
140 degree ( horizontal) 140 degree(vertical) |
|
Best View Distance |
5m-80m |
|
Gray Scale |
8bits input, correction with 14bits |
|
Display Color |
16.7M |
|
Brightness Adjustment |
100 levels |
|
Control System |
|
|
Correction Scale Level |
16bits |
|
Frame Update Frequency |
60-80Hz |
|
Screen Refresh Frequency |
480Hz |
|
Gamma Correction |
-5.0—5.0 |
|
Support Input |
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
Support VGA Mode |
800×600,1024×768,1280×1024,1600×1200 |
|
Color Temperature |
5000-9300 adjustable |
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|
Reliability |
|
|
Operating Temp. |
-20-60 Celsius degree |
|
Operating Humidity |
10-95% RH |
|
Operating Life |
100,000 hours |
|
MTBF |
5000 hours |
|
Continuous Working Time |
≥48 hours |
|
Protection Level |
IP65 |
|
Out of Control Pixel Rate |
0.01% |
