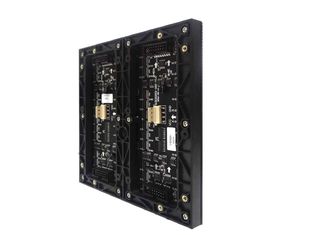

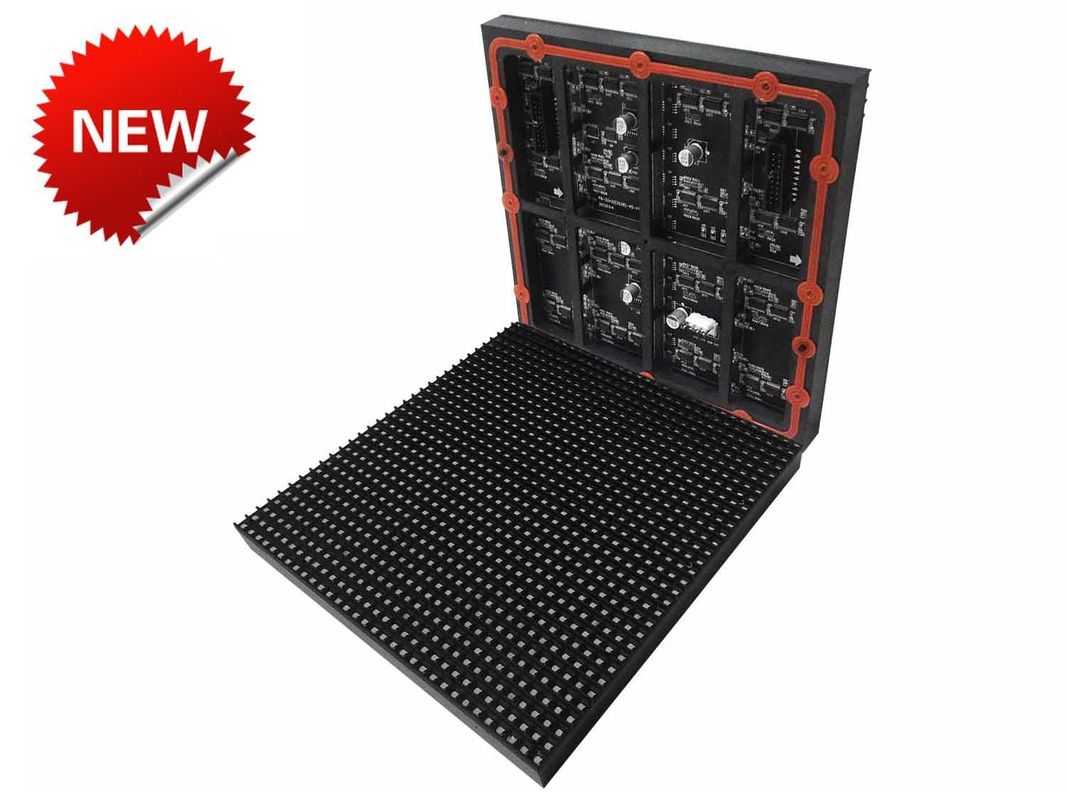

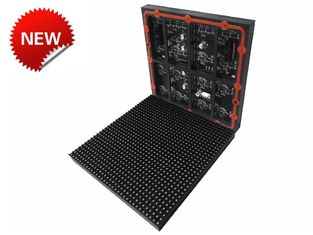

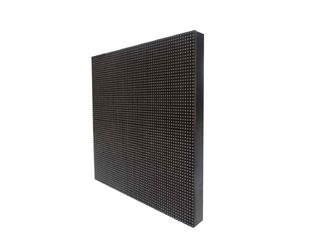

MUENLED-PH6 Outdorr SMD 5050 3 in 1 Module
تفاصيل المنتج:
| Place of Origin: | china |
| اسم العلامة التجارية: | muenled |
| إصدار الشهادات: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH6 |
شروط الدفع والشحن:
| Minimum Order Quantity: | 100pcs |
|---|---|
| الأسعار: | US$ 31.70 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
معلومات تفصيلية |
|||
| Screen Dimension: | 192*192 | Usage: | Outdoor |
|---|---|---|---|
| Tube Chip Color: | Full Color | Display Function: | Video |
| Pixels: | 6 | ||
منتوج وصف
Features:
● Outdoor full color SMD 3-in-1 LED Displays with wide viewing angle, good light, good flatness, high contrast and easy to automated batch production, to ensure the led display products with high stability,and can make high density outdoor display models, such as PH5 , PH6, PH8,etc. Outdoor SMD products suitable for outdoor high definition stage rental, event show, exhibitions,etc high level occasions.
Outdoor SMD LED Display Application: outdoor performances, stage rental, outdoor advertising, etc.
|
Parameters |
PH6 Outdoor SMD series |
|
Pixel Pitch |
6 mm |
| Pixel Density |
27777 Dots/m² |
| Pixel Configuration |
3 in 1 |
| LED Standard |
SMD3528/3535 |
| Module Size |
192*192mm |
| Module Weight |
0.15kg |
|
Brightness |
≥7500cd/m² |
|
Displays colors |
10.7Million color |
|
Protection Level |
IP65 |
|
Control Mode |
Synchronous/Asynchronous |
| Driving Method |
Constant driving 1/8 scan |
|
Refresh Rate |
800Hz |
|
Viewing Angle (H/V) |
H:110° V:110° |
|
The optimal viewing distance |
6-100m |
|
Consumption |
Max.consumption 800w/m² Average.consumption 250w/m² |
|
LED Lamp Parameters |
(R) γ d:(625-628nm) IV:(600mcd) (G) γ d:(523-525nm) IV:(1200mcd) (B) γ d:(470-472nm) IV:(350mcd) |
|
Comunication Type |
3G WIFI Cats ≤ 100m Multimode optical fiber ≤ 500m Single Mode optical fiber ≤ 1500m |
