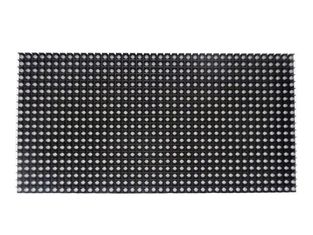

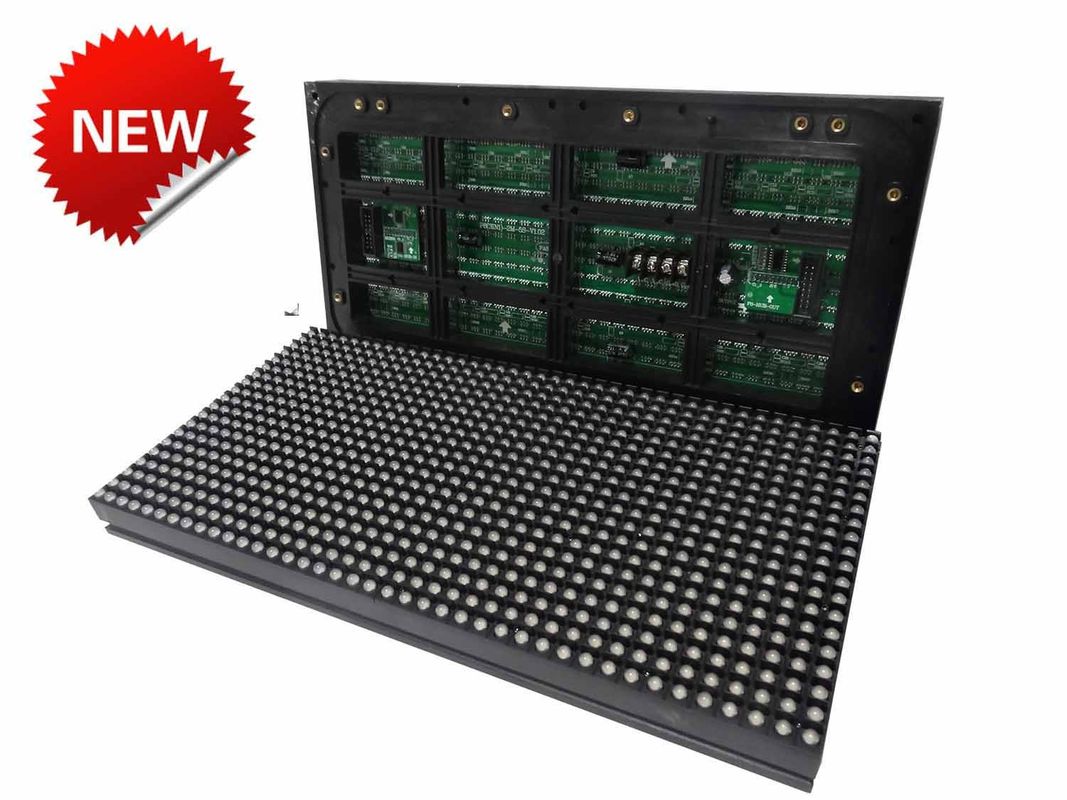

MUENLED-PH8 Outdorr DIP 5050 3 in 1 Module
تفاصيل المنتج:
| Place of Origin: | china |
| اسم العلامة التجارية: | muenled |
| إصدار الشهادات: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH8 |
شروط الدفع والشحن:
| Minimum Order Quantity: | 3PCS |
|---|---|
| الأسعار: | US$ 10 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
معلومات تفصيلية |
|||
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 8 |
منتوج وصف
Features:
● Outdoor DIP 3-in-1 full color led displays are adopts ￠ 5050 round lamp with wide viewing angle of 140 degrees, anti-UV, resistance to external shocks, anti corrosion. It is a combination of SMD and DIP. Suitable for use in outdoor harsh environments. Main Product Model: PH6.66, PH8, PH10,etc.
Outdoor DIP 3-in-1 LED Displays Application: beach, swimming pool, highways, high-temperature environment, low-temperature environment of large advertising led screen.
|
Parameters |
PH8 Outdoor DIP series |
|
Pixel Pitch |
8mm |
| Pixel Density |
15625 Dots/m² |
| Pixel Configuration |
1R1G1B |
|
LED Standard |
DIP5050 |
| Module Size |
256*128mm |
| Module weight |
0.8kg |
|
Brightness |
≥7500cd/m² |
|
Displays colors |
10.7Million color |
|
Protection Level |
IP 65 |
|
Control Mode |
Synchronous/Asynchronous |
| Driving Method |
Constant Current 1/5scan |
|
Refresh Rate |
1000Hz |
|
Viewing Angle (H/V) |
H:120° V60° |
|
The optimal viewing distance |
8-150mm |
|
Consumption |
Max.consumption 650w/m² Average.consumption 260w/m² |
|
LED Lamp Parameters |
(R) γ d:(625-628nm) IV:(1000mcd) (G) γ d:(523-525nm) IV:(2200mcd) (B) γ d:(470-472nm) IV:(500mcd) |
|
Comunication Type |
3G WIFI Cats ≤ 100m Multimode optical fiber ≤ 500m Single Mode optical fiber ≤ 1500m |
| The above content is for reference | |
