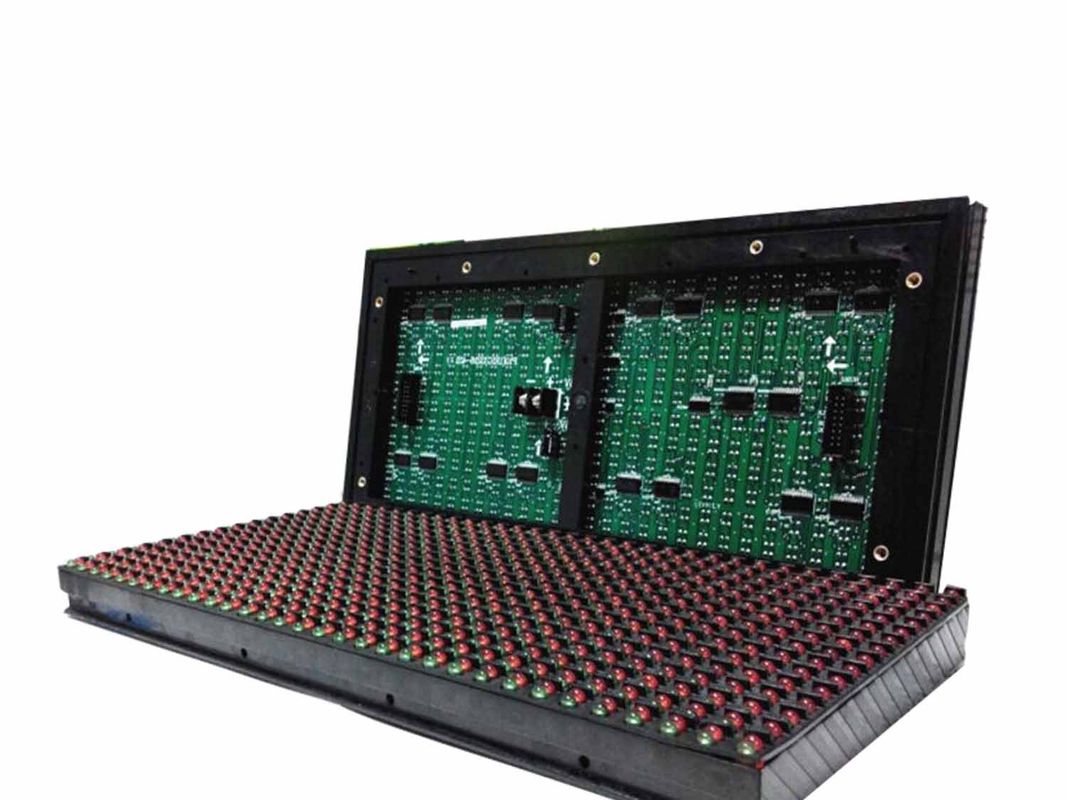

Ph10mm Outdoor Red Color LED Module 320mmx160mm Size
تفاصيل المنتج:
| Place of Origin: | CHINA |
| اسم العلامة التجارية: | MUENLED |
| إصدار الشهادات: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH10 |
شروط الدفع والشحن:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
معلومات تفصيلية |
|||
| Usage: | Outdoor | Tube Chip Color: | Red |
|---|---|---|---|
| Display Function: | Graphics | Pixels: | 10mm |
منتوج وصف
- Model: LCC-Ph10-O/S/I
- Shipping Weight: 1.2kg
- 1190 Units in Stock
- Manufactured by: Outdoor LED Module
Ph10mm Outdoor Red Color LED Module 320mmx160mm Size
|
1. Pixel |
|
|
Pixel Led |
546 |
|
Pixel composition |
R |
|
Wave length(nm) |
R: 626-628 |
|
2. Module |
|
|
Module Size(mm) |
320(L) * 160(H) * 20(T) |
|
Module Pixels (dot) |
32(L) * 16(H) |
|
3. Electricity parameter |
|
|
Density (Real) (dots/m^2) |
10,000 |
|
Density (Virtual) (dots/m^2) |
-------- |
|
Brightness (cd/m^2) |
≥6800 |
|
Viewing angle(angle) |
110 (horizontal); 70(vertical) |
|
Best viewing distance(m) |
6-100 |
|
Driving mode |
Constant driving 1/8 scanning |
|
Control mode |
Asynchronous transfer |
|
In-interface |
RS232 or UTP |
|
Control distance(m) |
≤100 |
|
Software |
Support windows series system |
|
Temperature for storage |
-30℃~70℃ |
|
Working temperature |
-10℃~50℃ |
|
Humidity |
10%~90% |
|
Life Time (hr) |
≥50,000 |
|
Out of control dots(scattered) |
≤3/10,000 |
|
Maintenance mode |
From the back side |
|
Switch power supply |
AC 110/220v v±10%, 47-64Hz (single phase) |
|
Max Power Consumption (W/m2) |
450 |
|
Avg Power Consumption (W/m2) |
300 |
