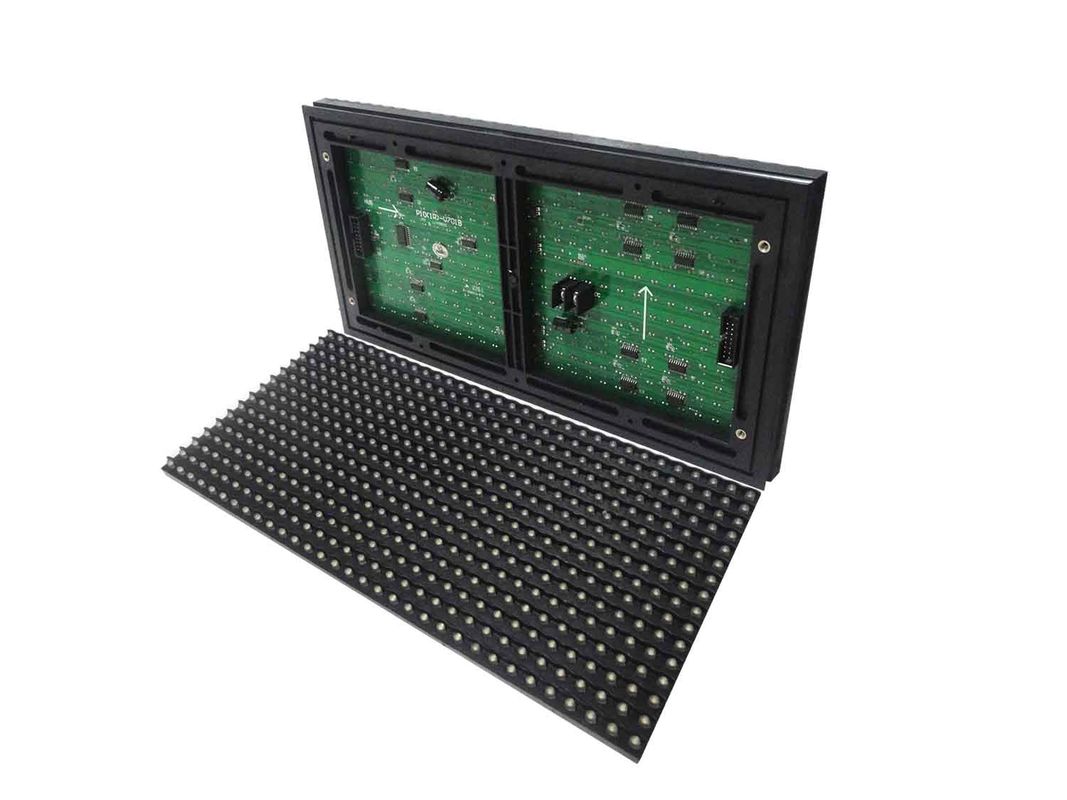

Ph10mm White Color Outdoor LED Module 320mmx160mm,32x16dots
تفاصيل المنتج:
| Place of Origin: | CHINA |
| اسم العلامة التجارية: | MUENLED |
| إصدار الشهادات: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH10 |
شروط الدفع والشحن:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
معلومات تفصيلية |
|||
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Animation | Pixels: | 10mm |
منتوج وصف
- Model: LCC-P10-O/W/W
- Shipping Weight: 1.25kg
- 1199 Units in Stock
- Manufactured by: Outdoor LED Module
Ph10mm White Color Outdoor LED Module 320mmx160mm,32x16dots LED Display Module
Waterproof:IP65, size: 320mmx160mm, including the DATA and Power Cable for led modules
|
1. Pixel |
|
|
Pixel Led |
546 |
|
Pixel composition |
White |
|
2. Module |
|
|
Module Size(mm) |
320(L) * 160(H) * 20(T) |
|
Module Pixels (dot) |
32(L) * 16(H) |
|
Electricity parameter |
|
|
Density (Real) (dots/m^2) |
10,000 |
|
Interface |
Standard 12PIN interface |
|
Viewing angle(angle) |
110 (horizontal); 70(vertical) |
|
Best viewing distance(m) |
6-100 |
|
Driving mode |
Constant driving 1/4 scanning |
|
Control mode |
Asynchronous transfer |
|
Protection |
OUTDOOR Waterproof |
